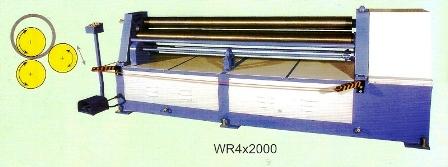

ASYMMETRICAL 3-ROLLER PLATE BENDING MACHINE

WITH ONE SIDE PRE-BENDING  折彎機



The WR series asymmetrical three rollers plate bending machine’s upper roller is manual.

The machine has a pre-bending function. Bending function is motor driven, and the upper

roller can be moved to remove the workpiece.



SPECIFICATIONS 技術參數：

MODEL 型號:	WR  4x2000	WR  3x2500
Max. thickness (mm)	4	3
Max. width (mm)	2000	2500
Yield limit (mpa)	245	245
Min. diameter full capacity(mm)	200	200
Top roller diameter (mm)	135	135
Bottom roller diameter(mm)	135	135
Main motor (kw)	3	3
Upper motor (kw)	1.5	1.5
Weight (kg)	1720	2020
Size (L.W.H.)	3250x770x1220	3750x770x1220
