概 述:

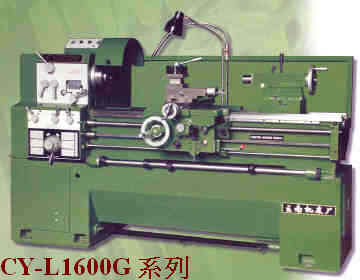

CY-L1600G 系列車床主軸通孔直徑為52mm，采用凸輪鎖緊式D-6號主軸，床腳采用樹脂沙鑄造，兩腳與油盤連為一體。　床前道軌、床頭箱齒輪徑淬硬、精磨能勝任一般車削和精密加工，車削各種常用公制、英制、模數和鎖孔、鉸孔、拉削油槽，精度高、剛性好、運轉平穏、噪音極低。　進給系統中有過載自動停止機構，腳踏刹車機構，主軸點動機構，操作簡便，安全可靠。

本車床可根據用户不同的需求，提供公制或英制進給傳動系統的普通或馬鞍車床。　可訂購不同電壓 (220V、380V、420V、440V等)，不同頻率 (50HZ、60HZ) 及功率為 (3.75KW / 5.5KW) 主電機驅動的車床。



INTRODUCTION:

CY-L1600G Series High Speed Gap Bed Lathe is a 52mm spindle bore and cam-lock construction of tipo No. D-6 spindle nose, The machine guideway and gears in the headstock are all induction hardened and precision ground, It can perform all basic turning operations (including cutting metric and inch threads, as well as drilling reaming and oil groove). Precise accuracy, high rigidity, smooth operation and low noise can be guaranteed. This Lathe is provided with automatic over-load stop mechanism in the feeding system, foot brake and spindle poit-to-point stop device for easy operation and reliable safety.

This Gap Bed Lathe is available either with metric or inch feed system to meet the different demand of customers. Also such lathes of diflenent voltages (ranging from 220V, 380V, 420V, 440V) various frequencies (ranging from 50HZ, 60HZ) and main motor power (ranging from 3.75KW / 5.5KW) are also available.



技術規格

SPECIFICATION

型號　Model:	CY-L1630G	CY-L1640G	CY-L1660G
床身上最大回轉直徑 Swing over bed	16” (410mm)
刀架上最大回轉直徑 Swing over cross slide	10-1/4” (250mm)
頂尖距 Distanced between centers	30” (750mm)   40” (1000mm)   60” (1500mm)
馬鞍上最大回轉直徑 Swing in gap	23” (580mm)
主軸頭部 Spindle nose	GB5900.3  3-86”  D6  凸輪鎖緊D1-6
主軸孔徑 Spindle bore diameter	21 / 16” (52mm)
主軸轉速範圍 Range of spindle speed	33 – 2000 r.p.m. (16級)
主電機動率 Main drive motor	7.1/2 H.P (3.75 / 5.5KW)
英制螺紋範圍 Inch threads range Main drive motor	4 - 56 T.P.I.
公制螺紋範圍 Metric threads range	0.5 - 7
機床尺寸 (長 x 寛 x 高) Overall dimension (L x W x H)	1850 x 840 x 1220	2100 x 840 x 1220	2600 x 840 x 1220
淨重 Net weight	1300 kg	1400 kg	1800 kg
