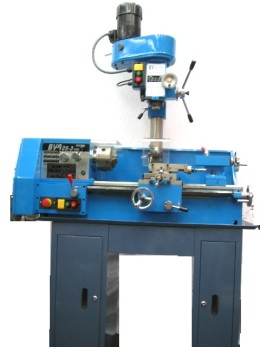

MULTI-FUNCTION CUTTING MACHINE 多
功 能
工 具
機
SPECIFICATIONS 技術參數：
Main specifications for turning operation:
|
MODEL 型 號：
|
BVB25-3 (BB25-3)
|
|
Max. swing diameter over bed
|
床身最大回轉直徑
|
250mm
|
|
Max. workpiece
diameter over carriage
|
刀架最大回轉直徑
|
130mm
|
|
Max. length of workpiece
between centres
|
最大工件長度
|
450mm
|
|
Max. cutting length
|
最大切削長度
|
420mm
|
|
Taper of hole in spindle/Hole
|
主軸錐孔 錐度 / 通孔
|
MT No.4 / 27mm
|
|
Range of spindle speed (6 steps)
|
主軸轉速範圍
|
6級 115-1620
r.p.m.
|
|
Range of carriage longitudinal feed
|
縱向進給量範圍
|
0.5-0.1/z/r
|
|
Range of screw thread(metric/inch) (20 kinds)
|
車削螺紋範圍(公/英制)
|
20級 0.2-3.5 /
8-56 t.p.i
|
|
Range of screw thread (mod) (10 kinds)
|
車削螺紋範圍模數
|
10級 0.2-1.25
|
|
Motor
|
電
動 機
|
0.37 kw
|
Main specifications for drilling and milling
operation:
|
Max. drilling diameter
|
最大鉆孔直徑
|
16mm
|
|
Max. diameter of vertical milling cutter
|
最大立銑刀直徑
|
20mm
|
|
Max. diameter of vertical milling face
|
最大立銑刀盘直徑
|
63mm
|
|
Taper of hole in spindle nose
|
主軸錐孔錐度
|
MT No.3
|
|
Max. distance between spindle box
|
主軸箱移動過程
|
160mm
|
|
Max. quill movement of spindle
|
主軸套筒移動過程
|
80mm
|
|
Max. horizontal rotation of spindle box
around column
|
主軸箱水平回轉角度
|
± 180°
|
|
Max. inclination of spindle box (left
right)
|
主軸箱左右傾斜角度
|
± 90°
|
|
Range of spindle speed (4 steps)
|
主軸轉速範圍
|
4級 400-1640
r.p.m.
|
|
Motor
|
電
動 機
|
0.37 kw
|
|
Weight
|
重量
|
210 kg / 230
kg
|
Standard Accessories
隨機附件:
|
Centre Morse No. 2
|
頂尖 莫氏 No. 2
|
1 pc
|
|
Centre Morse No. 4
|
頂尖 莫氏 No. 4
|
1 pc
|
|
Inner hex. spanner
|
內六角板手
|
1 pc
|
|
Single head spanner
|
單頭板手
|
3 pcs
|
|
Change gear
|
挂輪
|
1 set
|
|
“T” slot table
|
“T”槽工作台
|
1 pc
|
Optional
Accessories 選購附件:
|
Four jaw chuck
|
四爪卡盤 ψ125
|
|
|
Lathe 車 床
