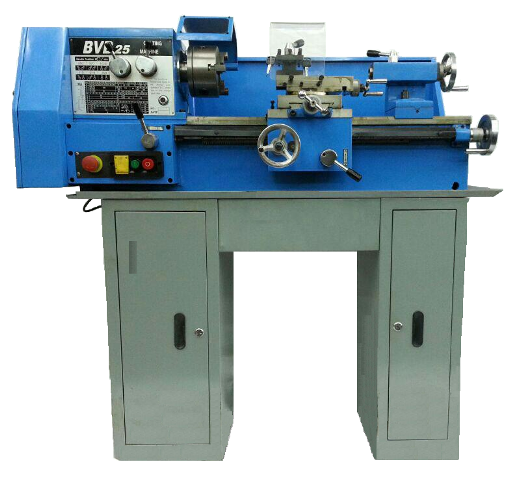

MODEL 型 號：

BVB25-1 (BB25-1)

Max. swing diameter over bed

床身最大回轉直徑

250mm

Max. workpiece diameter over carriage

刀架最大回轉直徑

130mm

Max. length of workpiece between centres

最大工件長度

450mm

Max. cutting length

最大切削長度

420mm

Taper of hole in spindle/Hole

主軸錐孔 錐度 / 通孔

MT No.4  /  27mm

Range of spindle speed (6 steps)

主軸轉速範圍

6級 115-1620 r.p.m.

Range of carriage longitudinal feed

縱向進給量範圍

0.5-0.1 /z/r

Range of screw thread(metric/inch) (20kinds)

車削螺紋範圍(公/英制)

20級 0.2-3.5  /  8-56 t.p.i

Range of screw thread (mod) (10 kinds)

車削螺紋範圍模數

10級 0.2-1.25

Motor

電 動 機

0.37 kw

Weight

重量

1350 kg / 150 kg

Centre Morse No. 2

頂尖 莫氏 No. 2

1 pc

Centre Morse No. 4

頂尖 莫氏 No. 4

1 pc

Inner hex. spanner

內六角板手

1 pc

Single head spanner

單頭板手

3 pcs

Change gear

挂輪

1 set

Four jaw chuck

四爪卡盤 ψ125

1 set

Follow rest

跟刀架

1 set

Steady rest

中心架

1 set

Drilling jig with shank

帶接柄鉆夾頭ψ1-13莫氏No. 3

1 set

Milling jig: 4,5,6,8,10,12,14,16,

銑夾頭: 4,5,6,8,10,12,14,16,

1 set

Plain vice 90mm

平口鉗 90mm

1 pc

Rotary indexing bead with indexing plate

帶分度回轉工作台

1 set

Charge gear: Z40, Z50, Z65, Z80, Z125

挂輪: Z40, Z50, Z65, Z80, Z125

1 set

Base frame

機座

1 set
