INTRODUCTION:
RY-310, RY-360, RY-400A,
RY-400B, RY-500 BAND SAW MACHINES HAVE POWER
SPEED AND BAND TENSION TO PRODUCE EXCELLENT RESULTS AND MANUALLY CONTROLLED
MACHINES WILL CUT ANY MATERIAL FROM MILD STEEL ALUMINUM AND BRASS TO TOUGH TOOL
STEEL, ALSO ABLE TO MAKE STRAIGHT OR CONTOUR INTERNAL OR EXTERNAL CUTS.
技術參數 SPECIFICATIONS：
|
型 號
|
MODEL:
|

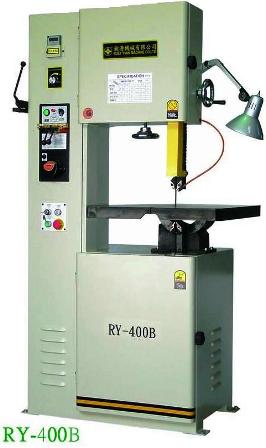

RY-400B
|
|
切削能力(高度)
|
CUTTING
CAPACITY
|
300mm
|
|
喉 深
|
THROAT
DEPTH
|
400mm (15.3/4”)
|
|
鋸帶寛度
|
BLADE
WIDTH
|
3-16mm
|
|
鋸帶長度
|
LENGTH
OF SAW BLADE
|
3390-3467mm
|
|
鋸帶速度
|
SPEED
|
60-1650 ft/min)
|
|
主馬達 / 砂輪馬達
|
MAIN
MOTOR / GRINDER MOTER
|
2HP ,
1/8HP
|
|
焊接容量
|
ELECTRIC
WELDER
|
4.2 KVA
|
|
工作台傾斜角度
|
TABLE
TILT
|
R-45° L-15°
|
|
地面至工作台高度
|
HEIGHT
OF TABLE
|
970mm
|
|
工作台面積
|
TABLE
AREA
|
550x600mm (21.5/8” x 23.3/5”)
|
|
機械尺寸
|
DIMENSION
MACHINE
|
1825mm
x 710mm x 1070mm
|
|
淨重
|
NET
WEIGHT
|
420
kgs
|
